How to send tokens to Ethereum with Gravity Bridge

How to send tokens to Ethereum with Gravity Bridge

This guide will provide the information you’ll need to make a transfer of tokens native to Cosmos, across to Ethereum and ultimately onto a Decentralised Exchange (DEX).
It has been constructed using another Cosmos project (StarGaze) as the token that is being transferred across using the Gravity Bridge.
The process follows 3 distinct parts:
Part 1: Transfer CHEQ tokens to Gravity Bridge from cheqd
In order to transfer tokens from Cosmos to Ethereum, the Gravity Bridge chain is required to hold the tokens you wish to transfer. Therefore, the first step is to send the tokens from the chain you are transferring from on Cosmos, to the Gravity Bridge, via IBC.
Part 2: Transfer CHEQ tokens from Gravity Bridge to Ethereum
The Gravity Bridge then will be able to transfer the tokens across the bridge, locking them up on the Cosmos side, and minting them on the Ethereum side
Part 3: Add the wrapped CHEQ token to your MetaMask wallet & connect to UniSwap
Finally, if you'd like to interact with DEX's such as UniSwap you will be required to add the token to your MetaMask using a ‘Contract Address’, and then connect this to your UniSwap account.
The final section of the guide will provide instructions on how to complete this process in reverse (i.e. transferring tokens from Ethereum to Cosmos).
Let’s do it…

Part 1: Transfer CHEQ tokens to Gravity Bridge from cheqd

The following instructions for this part use Spacestation itself for the IBC transfer of CHEQ tokens to the Gravity chain. You can however also do a direct IBC transfer within Keplr itself.

Step 1: Connect Wallets

Go to Spacestation on your browser which you use to access you MetaMask and Keplr wallets.
Connect your Keplr wallet containing the tokens you which to transfer.
This will take you through the login process using the browser extensions for both wallets (don’t worry about which side if on Source and which Destination at this stage).

Step 2: Source Chain

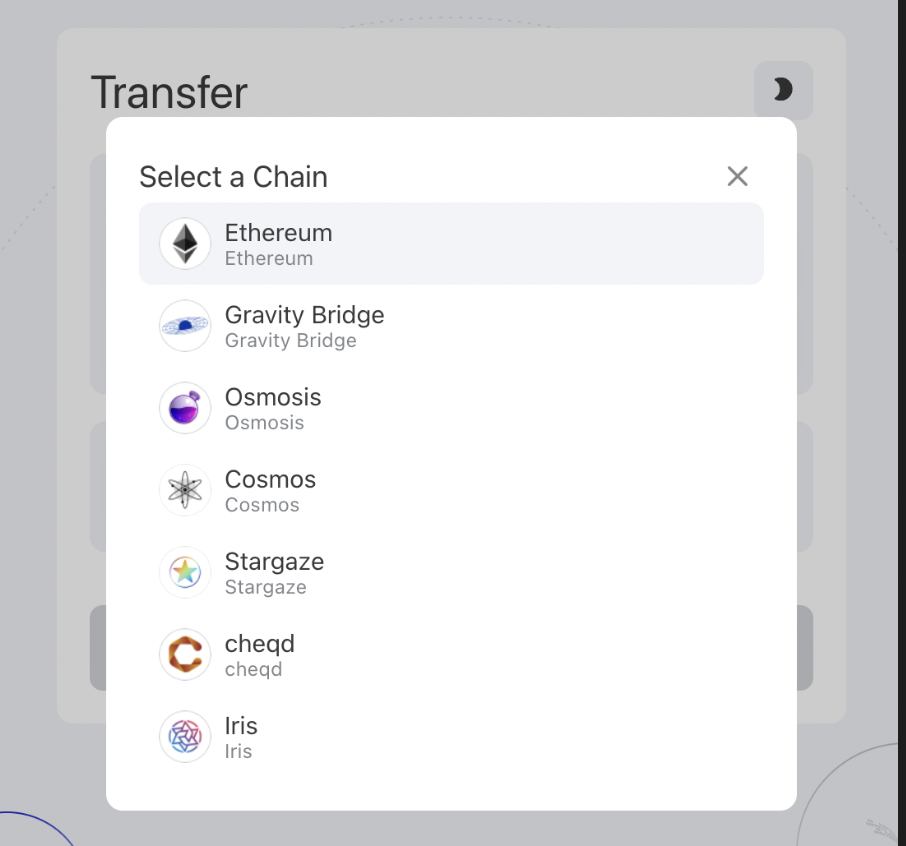

Select the cheqd as the 'Source' chain

Step 3: Destination Chain

Select the destination chain - this MUST be the Gravity Bridge chain.

Step 4: Select Token and Transfer

Select the token you wish to transfer and enter the amount noting you'll need an additional amount to pay for gas fees.

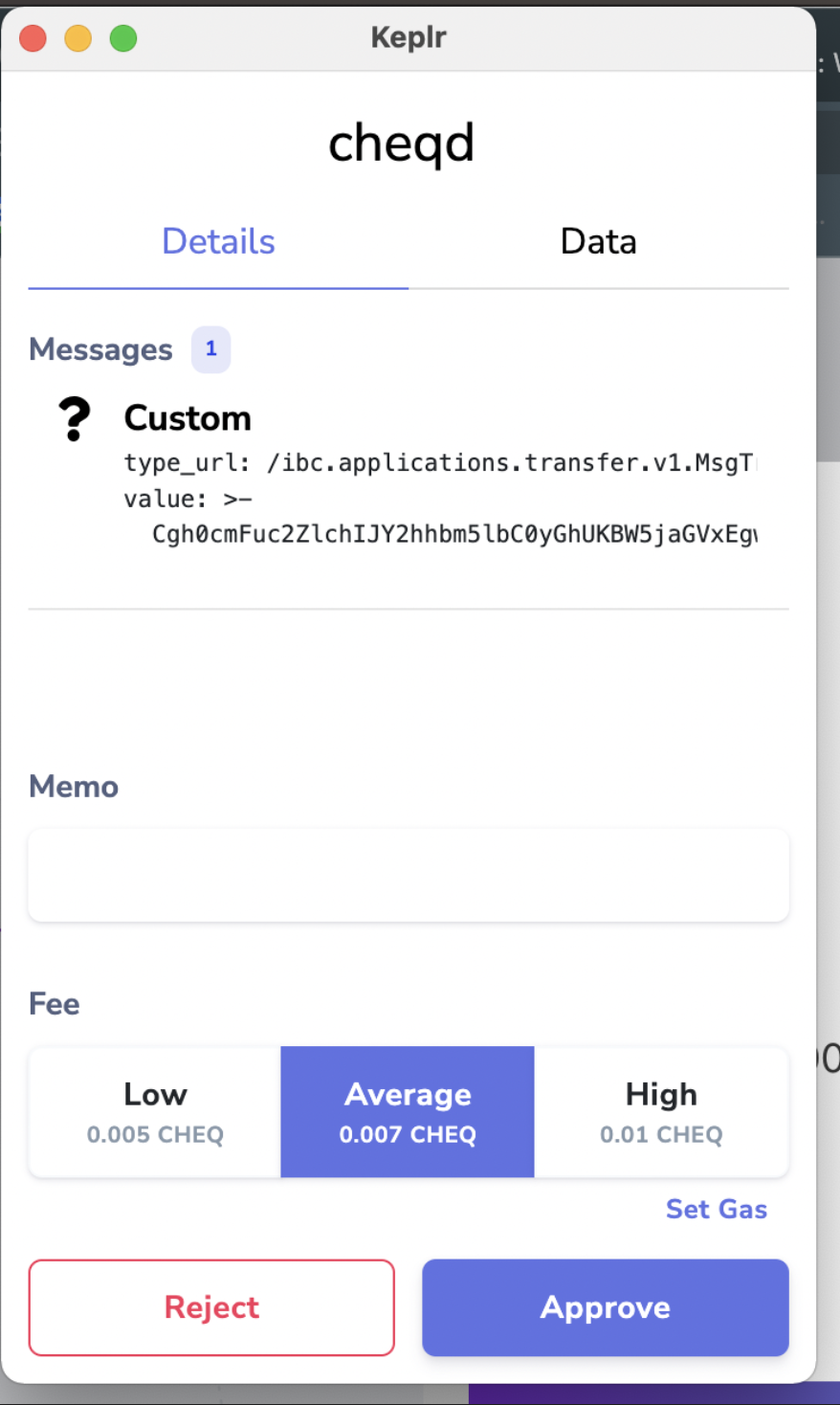

A pop-up will appear which you'll need to approve for the transaction to go through.

Part 2: Transfer CHEQ tokens from Gravity Bridge to Ethereum

Step 5: Select Source & Destination

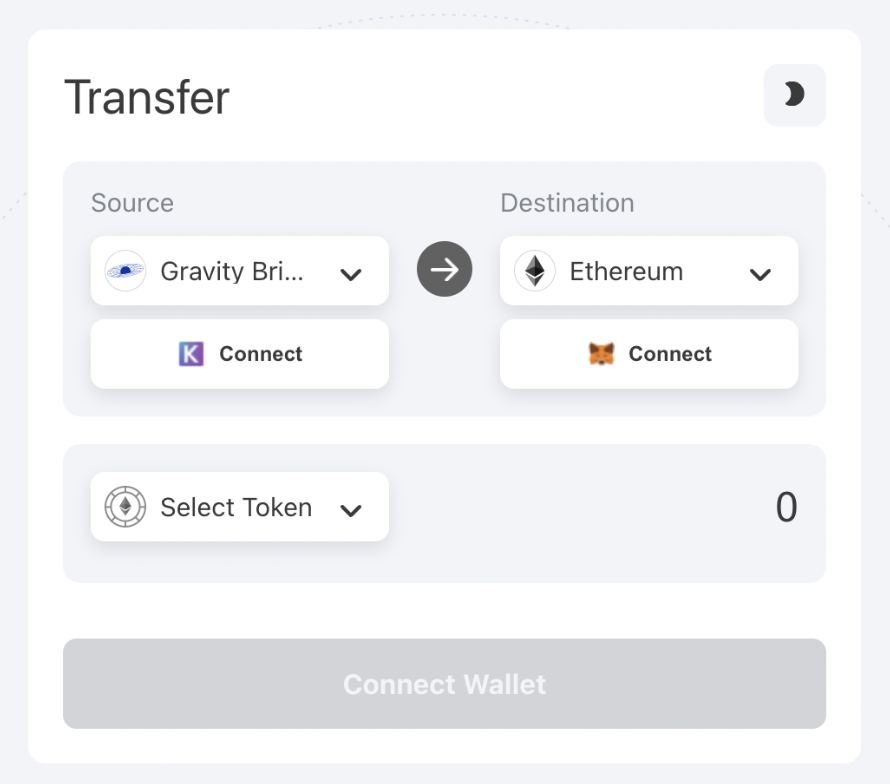

Select Gravity Bridge as the Source, and Ethereum as the Destination.
Login to your MetaMask wallet using the browser extension and connect.

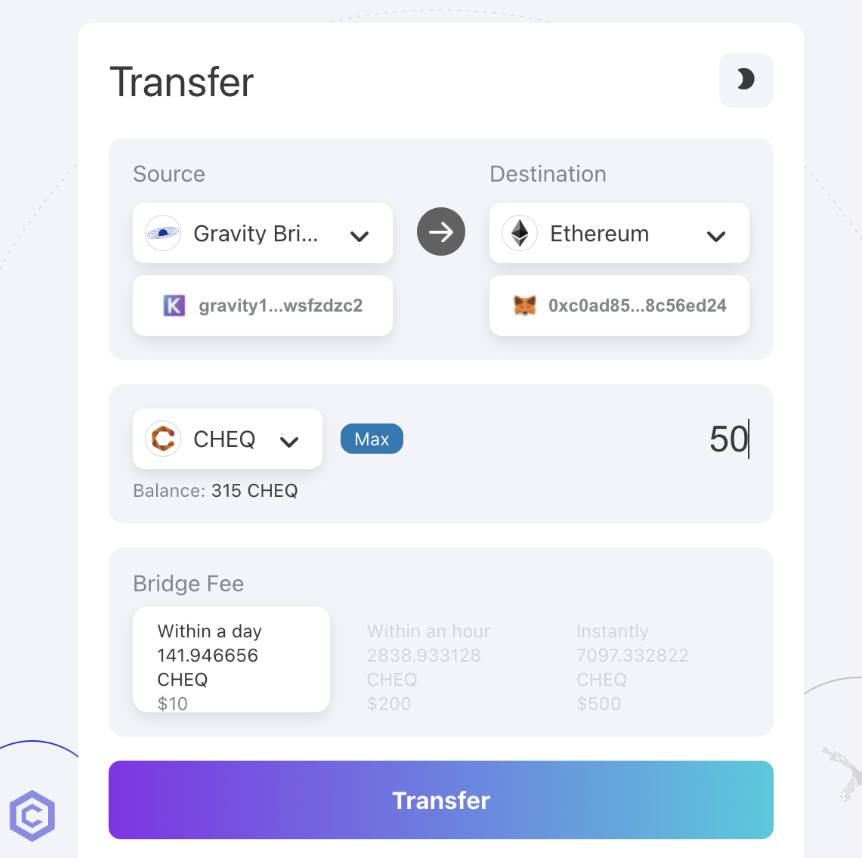

Step 6: Select your CHEQ tokens & Enter the amount you wish to transfer.

The token you have sent to Gravity Bridge will now appear on the list within Gravity Bridge with the available amount listed. Enter the amount you wish to transfer.
Note: The transaction fees are high due to the costs of transactions on the Ethereum side. You can select either a day, an hour or instant, at increasing costs.

Part 3: Add the CHEQ token to MetaMask & connect to UniSwap

Once you have completed the transfer you will need to wait for duration you have selected.

Step 7: Add CHEQ to your MetaMask wallet

During this time you can get started with adding CHEQ to your MetaMask wallet.

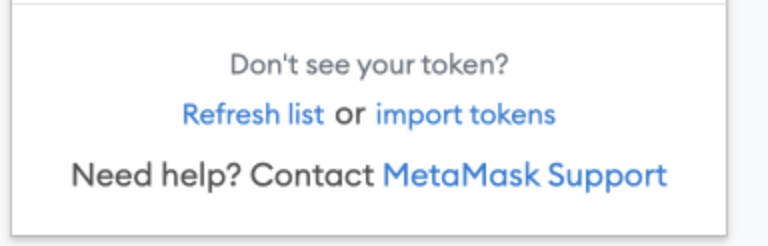

Open your MetaMask wallet and select ‘import tokens’ at the bottom of the window

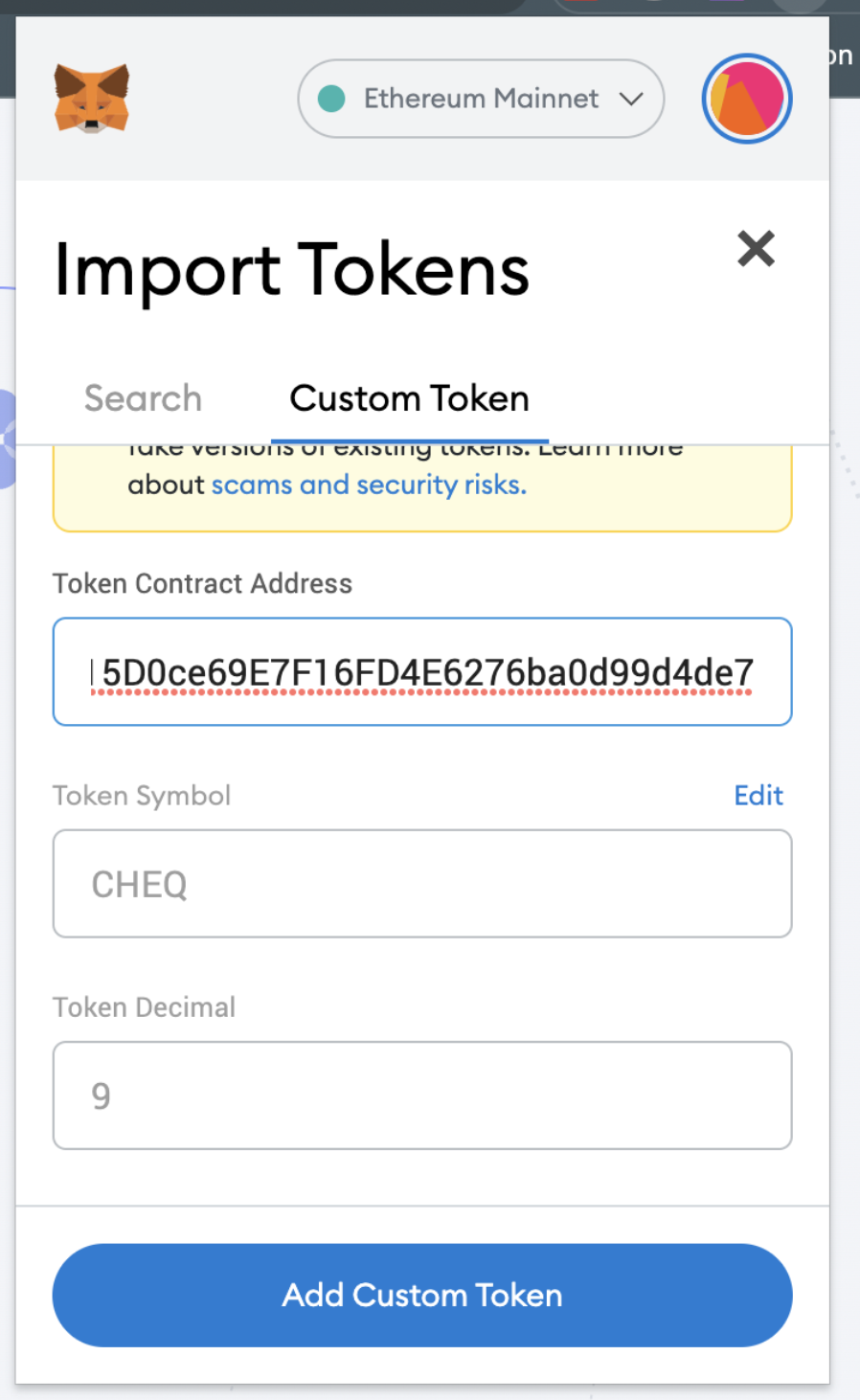

Select ‘Custom Token’ and enter the CHEQ 'Token Contract Address'.
CHEQ: 0x70EDF1c215D0ce69E7F16FD4E6276ba0d99d4de7
Here are a selection of other Cosmos chains available thanks to the Gravity Bridge
ATOM: 0xdaf0b40b961CA51Fc914fbabdA8E779619576caD STARS: 0x4547254E6E3195cE57Bc50352193A25c2F4B8FCf HUAHUA: 0x7bE48633D86AA9821284B01030b8a3F9B06eA876 NYM: 0x525A8F6F3Ba4752868cde25164382BfbaE3990e1 NYMT: 0xE8883BAeF3869e14E4823F46662e81D4F7d2A81F PLA: 0xa752Ef191E8b103150D5FE4a6639A598Ede5a50F
When entered this will automatically retrive the CHEQ token symbol and denomination (10^9 for CHEQ). CHEQ will now appear in your list of assets on the MetaMask homepage.
Now you can wait for CHEQ tokens that have been sent via Gravity Bridge to appear in your MetaMask wallet.
